Mechanical Safe Lock

30133 Series Dial and Ring

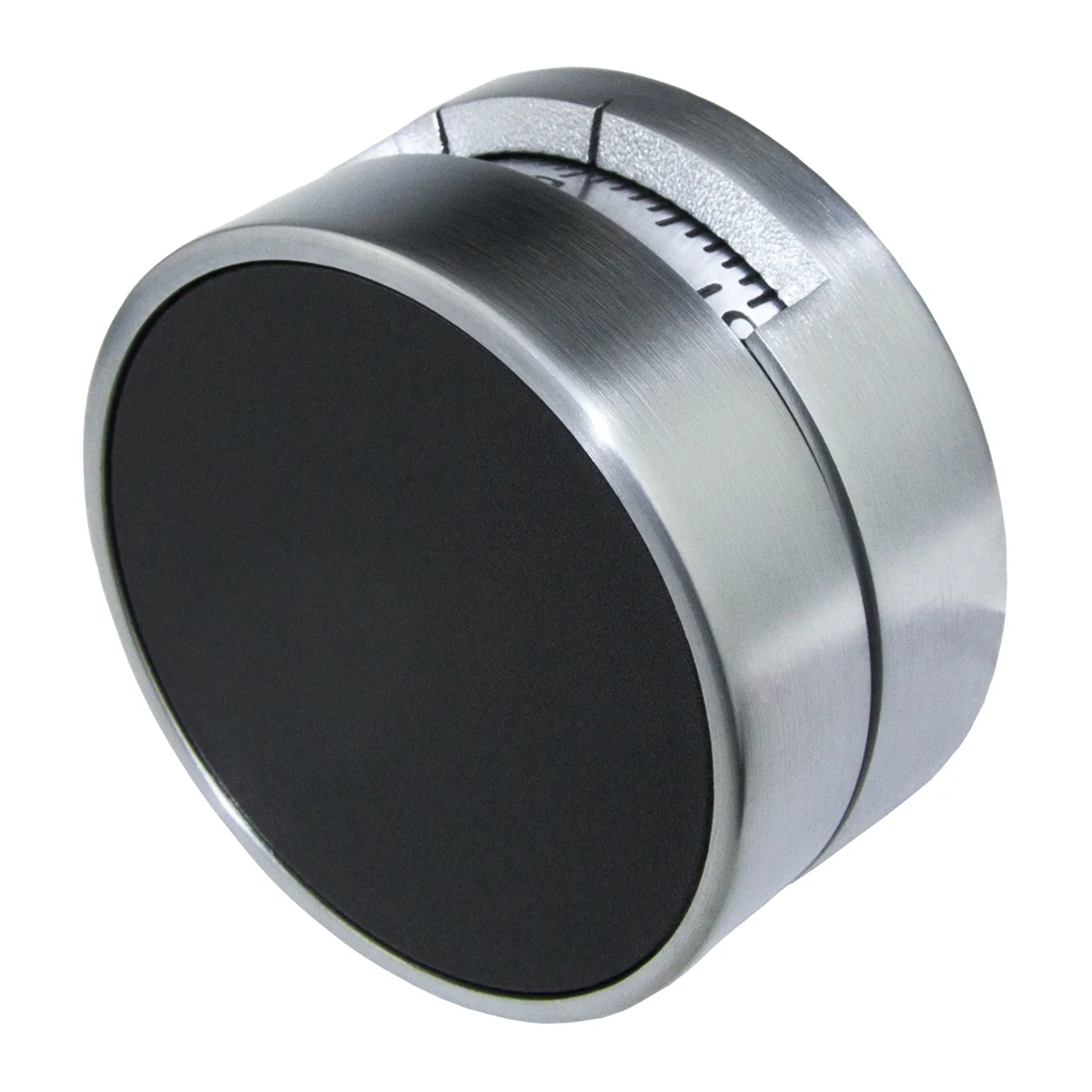

kcolefas u.l. top reading dial and ring 30133
kcolefas u.l. top reading dial and ring 30133 kcolefas u.l. top reading dial and ring 30133, black finish kcolefas u.l. top reading dial and ring 30133 with key

The top reading dial and ring 30133 series works with 3-wheel mechanical safe lock bodies. The low profile dial and ring can be seen on many government applications and high end ATMs. These locks are also good choices for safes, vault doors and similiar applications which require an additional mechanical safe lock protection to guarantee the maximum security level.

Features

Features

  • Top reading dial
  • External diameter 74 mm
  • Die-cast with satin chrome finish
  • Thread UNS 5/16″-40, die-cast
  • Projecting 102 mm (4″)
  • Usable length: 79 mm for 3-wheel lock 30181
  • Dial splined on 43
  • Steel spindle

Specifications

Product Specs Description
Size D72 mm, H36 mm
Weight 479 g
Finishing Satin chrome, Black & White
Key Locking Can be ordered with key locking on dial with two keys
