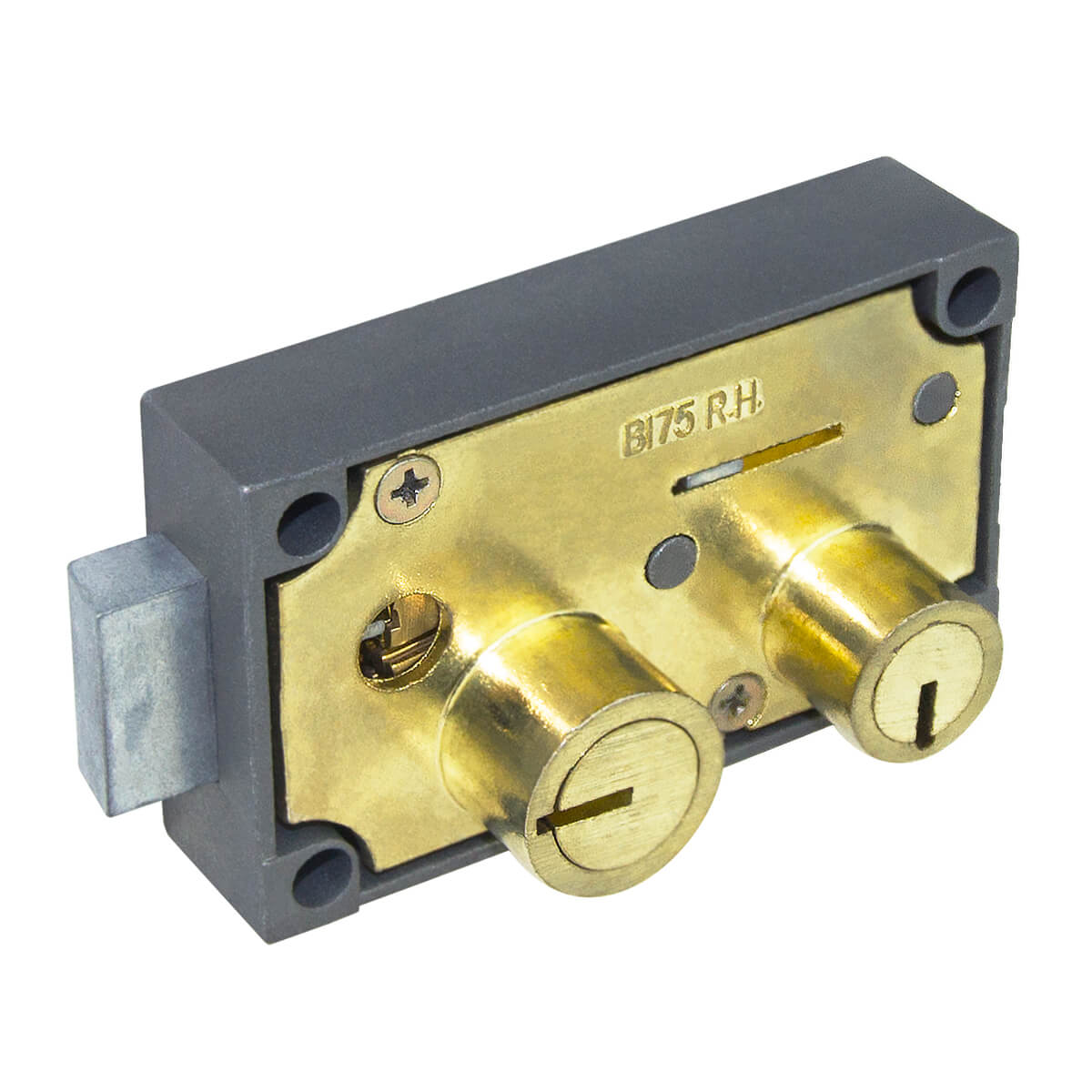

30401 Series
Safe Deposit Lock
30401 series safe deposit locks share the same footprint as Diebold 175-05 safe deposit locks that allow these locks to be the perfect replacement and maintenance solution for most banking deposit boxes.
These locks are available in both left-handed and right-handed types to accommodate different doors.
Product Details
Specification
- Available for right hand (R.H.) and left hand (L.H.)
- 1/2″ nose height, big nose little nose for standard safe deposit doors
- 7 renter levers, 7 guard levers for maximum key combinations
- Brass levers for long life
- Keys retained when in open position for added security
Mounting dimension
- 71*38 mm
- Same footprint as Diebold 175-05 for easy retrofitting
- Same footprint as Bullseye B175-05 for easy retrofitting
Size
- 83*49*20 mm
Weight
- 312.5 g
Functions
- Left hand (L.H.)
- Right hand (R.H.)
